地热井和空调孔的孔钻孔管道和滤水管

  1. 孔钻水管

    我们提供各种规格和材料的孔钻孔管道,并提供漏洞的服务,欢迎您致电并询问我们!
    孔钻水管的直径:114mm,127mm,140mm,168mm,178mm,219mm,245mm,273mm,325mm,406mm,426mm,530mm,630mm,630mm,。
    孔钻孔的材料:不锈钢,碳钢,J55,N80和L80。

    2.地热井的水过滤管

    地热井滤管管由API标准的基本管和高精度的线绕线过滤管组成。
    产品的特性:
      1.It has strong pressure bearing capacity. With the support of the inner-layer base pipe, even if external filter pipe is deformed partially, the gap will not increase, and sand control performance will be more reliable. It is fit for a harsh service environment.
      2.The gap of the outer-layer screening pipe is uniform, the error is as small as 0.05mm, which can control sand effectively.
      3.Gap density of the screening pipe is better than other screening pipes, which reduces the flow resistance and greatly improves the water yield.
      4.Continuous V-shaped structure reduces the water penetration speed and alleviates the pressure on the pipe body and the equipment.
      5.Pipe diameter is smaller, which reduces the difficulty of drilling construction.
      6.Materials of the base pipe is J55, K55, N80, etc of API standard, those of the outer-layer screening pipe is 304 stainless steel or high quality low carbon steel, and other materials can also be used in accordance with the customer’s requirements as well.

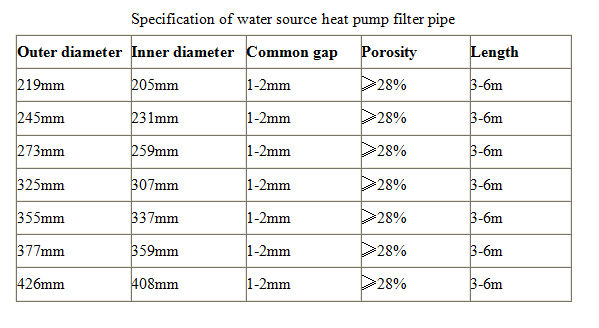

    3.空调井的水过滤管

    我们公司生产的空调的水过滤管是专门为水源热泵系统设计的。它用于水源摄入量和水源热泵的充电。该产品具有以下特征:
      1.High porosity. The porosity of this product is over 25%. High porosity can reduce water flow penetration speed, reduce the flow resistance, not only improves the effect of water intake and recharge, but also saves the energy consumption of water pumping and recharge.
      2.The gap is not be easily blocked. The gap structure is narrow outside and wide inside, and the gap will not be blocked by sand and stone, which prolongs the service life of the air conditioning well.
      3.The pressure-bearing capacity of the pipe body is big. There is no weld on the surface of this product. Compared with other welded pipes, it has a higher ability to bear pressure.
      4.Sand control effect is good. The gap control of this product is accurate, the error is small, outer-layer filter and sand particles can be effectively prevented into the well, and the loss of water pump equipment can be reduced.
      5.Convenient for construction. Compared with bridge pipe and cement pipe, this product is light in quality, convenient for being put into the well and the risk and other unsafe factors brought by construction can be reduced.
      6.Diversified materials. The pipe body is made of galvanized carbon steel, plastic sprayed carbon steel and stainless steel. Excellent material makes the pipe and filter material never stick with each other, which effectively ensure long-term permeability.

    注意:以上是常见规范,我们可以根据客户的要求,以满足客户使用需求的需求设计外径,间隙和孔隙率。
